BMS3D

Backpack mobile scanner

The BMS3D backpack mobile scanner has been designed to make land surveying everywhere. This backpack mobile scanning system includes LiDAR sensors and a camera (two different versions, one with 4x pinhole cameras and one with 1x panoramic).

Narrow streets and pedestrian zones are considered hurdles when it comes to mobile scanning. The new BMS3D makes this sort of tasks achievable.

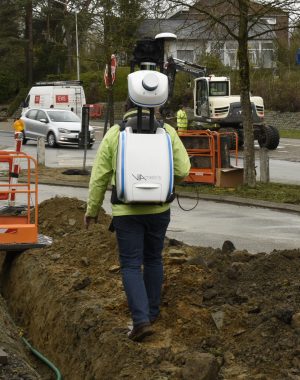

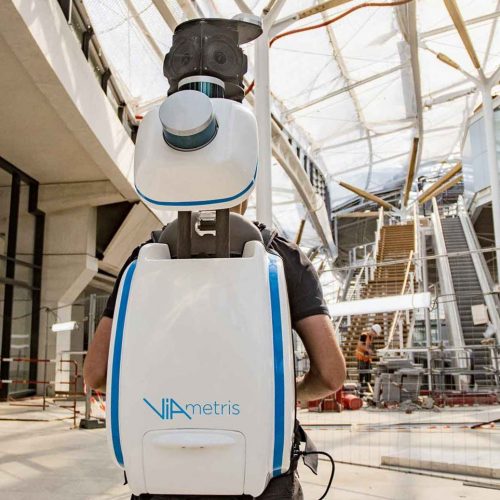

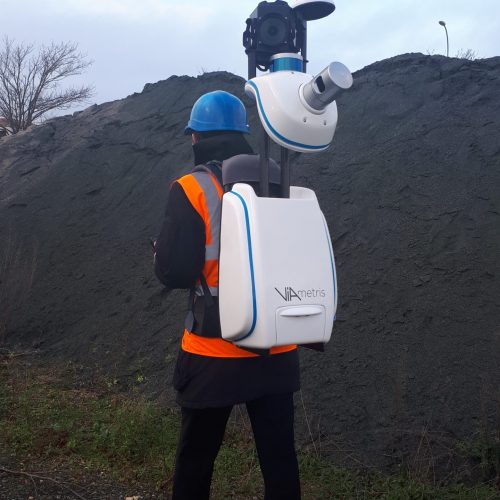

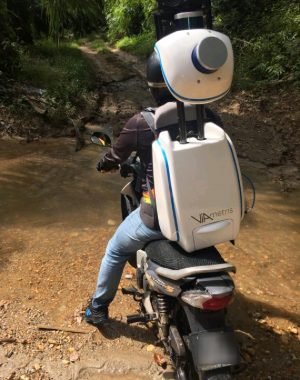

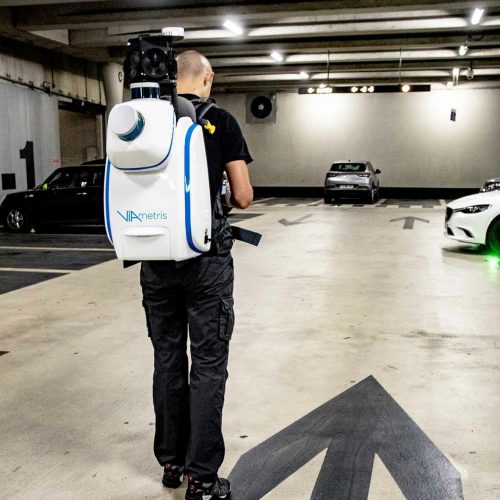

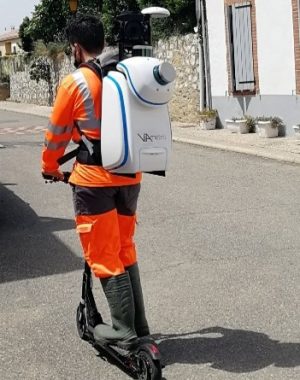

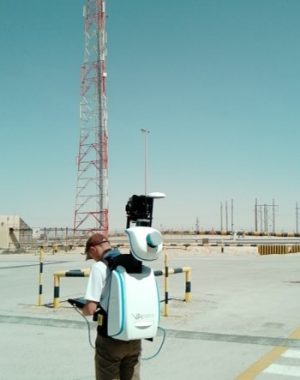

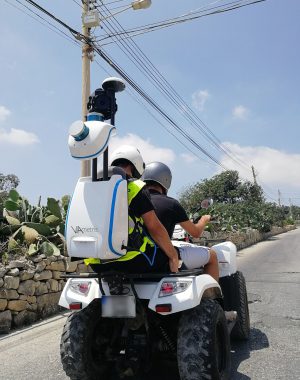

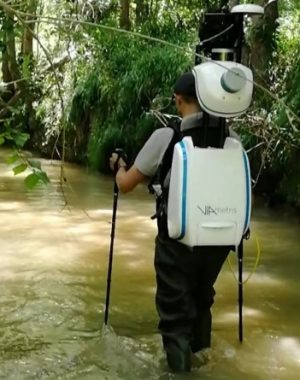

This system can be used on pedestrian tracks in urban centers, on cycling tracks, in construction sites, in indoors, in forests, in shopping malls, in airports, on road curbs or sidewalks: more or less anywhere !

VIAMETRIS has been an expert for 10 years in the 6DOF LiDAR-SLAM algorithm, this has allowed the company to offer this complete solution for any kind of mapping applications.

DATA CAPTURE

Accuracy
Centimeter relative accuracy

Versatility & Productivity
25 km/h of continuous capture
360º Camera 30 Mpx

Performance
Dual LiDARs architecture
2 x 300,000 points per second
30 Mega pixels high-resolution 360º images

Adaptability
No calibration needed
Indoor & outdoor scanning

User-friendliness
Lightweight (13,5 kg)
Remote control via professional Windows 10 tablet
Hot swappable batteries

Comprehensiveness
All accessories included (batteries, second antenna, tablet, etc.)
Post processing software included

DATA PROCESSING

All our solutions come with our proprietary software PPiMMS for post-processing. PPiMMS is a powerful post-processing software that automatically corrects drifts to compute precise and dense 3D point clouds. It simultaneously shows images.

  • Trajectory computation combining SLAM technology and INS/GNSS coupling
  • Automatic drift correction (loop closure)
  • PPK GNSS geo-referencing integration for any coordinate systems
  • Ground control points integration
  • Possibility to add manual constraints
  • Images/point cloud overlay
  • Point cloud colorization
  • Project merging
  • Universal exports (LAZ, LAS, E57) compatible with CAD, GIS and BIM standards

ACCESSORY

LIGHT KIT

  • Lightweight
  • Full remote control from tablet
  • Low light environments (indoor, construction site without electricity, etc.)
  • Very powerful : 2 x 4000 lumens
  • Rugged Aluminum structure
  • 360° field of view
  • Cooling fans for temperature control

PRODUCT VARIATIONS

4 CAMS

  • 4 IDS uEye Color perspective cameras
  • Quick adaptability to changes in brightness with CMOS sensors
  • Global Shutter technology to ensure high resolution in high speed capture

HD

bMS viamtris backpack mobile mapping system
  • High density
  • 700,000 points of data capture (HD dual LiDAR)
  • Speed up to 60 km/h
